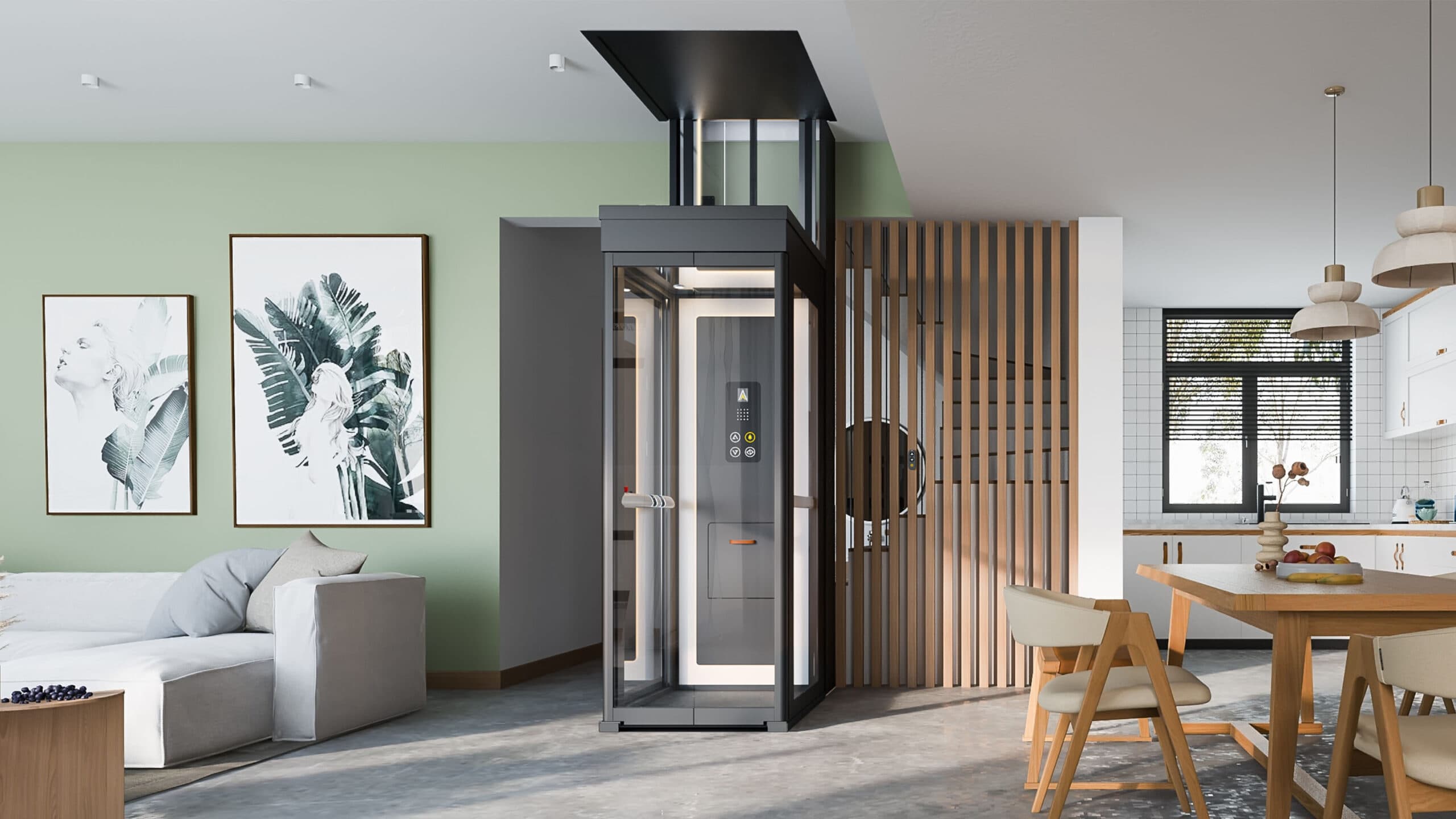

    ascenda-shaftless-home-elevator-2920×1643-1

    Shaftless home elevator

    Shaftless home elevators are space-saving and efficient accessibility solutions, but some are more space-saving than others. Thanks to the incredibly compact design of the Ascenda residential elevator, you now have the possibility to age in place comfortably and preserve a maximum of your square footage.

    In addition, the Ascenda Elevator only requires minimal building alterations, making it easier and more affordable than ever to render your two-story home accessible. So why wait? Contact your closest Cibes Symmetry dealer today and take the first steps towards to ensuring your long-term independence at home.

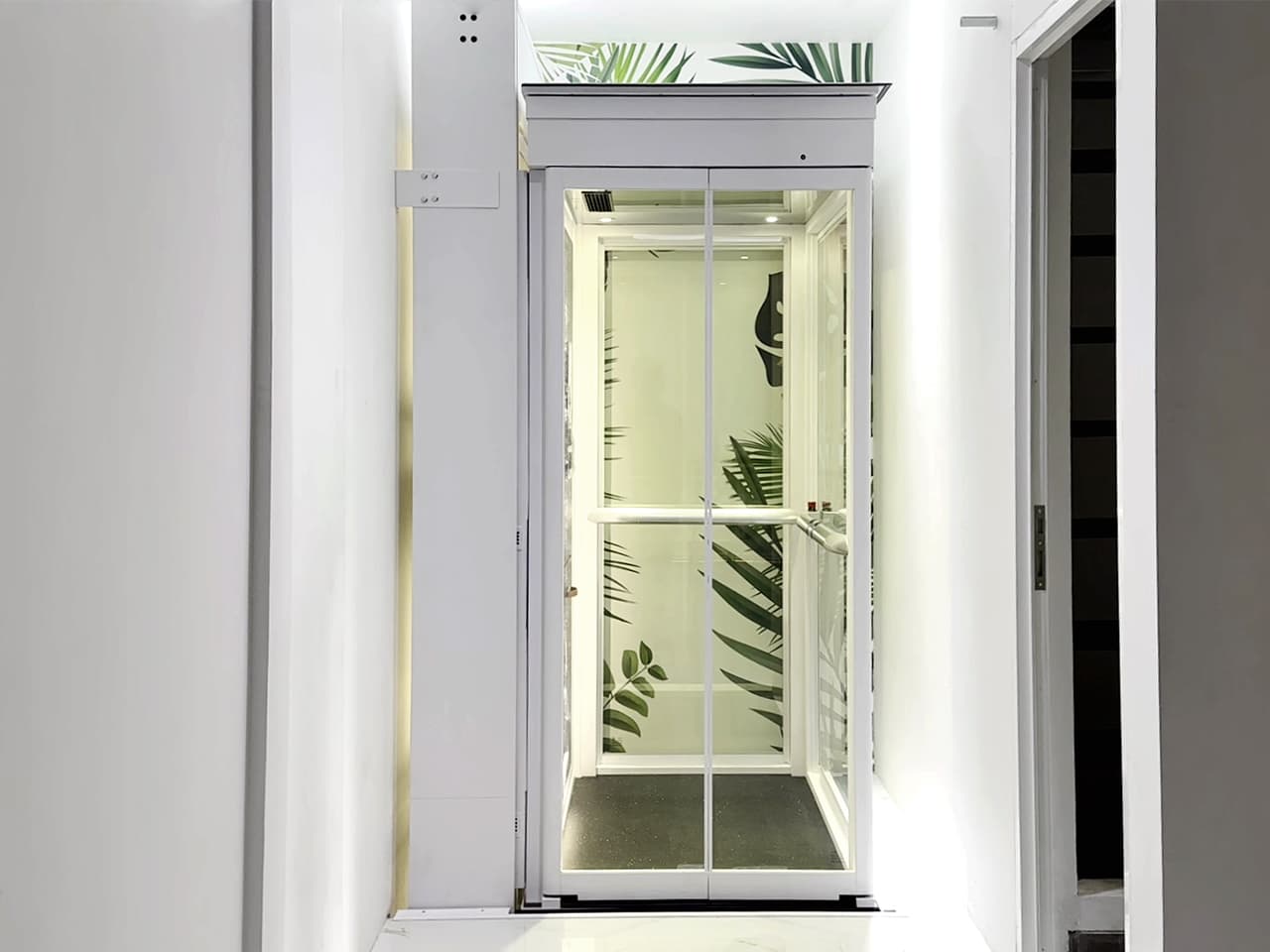

    small in home elevator installations with minimal construction

    What is a Shaftless home elevator?

    A shaftless elevator for home use is designed to travel through one single-floor opening between two floors. Unlike larger elevators, a shaftless elevator does not require a shaftway, elevator pit, or machine room, resulting in a very small installation footprint. The integrated sliding doors are also more space-saving than swing doors, allowing you to maximize your floor space.

    Unlike other home elevators, shaftless lifts are operated with hold-to-run, which makes your home lift very safe and easy to use. Hold-to-run means that the elevator travels when you maintain pressure on the button and stops when you release the pressure. For the safety of you and your loved ones, sensors on the top and bottom of the elevator instantly stop the lift in case any obstructions are detected.

    Read more about the Shaftless elevator
    shaftless residential elevator with small footprint in living room
    shaftless elevators handrail close up
    white elevator drive system shown in family home

    Find your closest dealer

    Get in touch with your closest dealer to take the first step towards the elevator of your dreams.

    shaftless elevators for home mirror ceiling
    ascenda elevator saloon door open
    ascenda elevator interior features close up
    ascenda Shaftless Elevator fold down Seat

    Accessibility features

    To cater for your comfort, the Ascenda home elevator design includes a range of accessibility features, such as:

    • Fold down seat
    • Intuitive handrail control
    • Remote control fob
    • Emergency phone

    Specifications and model details

    Technical information

    • Installation:Indoor
    • Rated load:770 lbs
    • Power supply: 230V, 60 Hz, Single Phase
    • Speed:30 FPM
    • Min headroom:92" *Subject to local regulations, code and site requirements
    • Lift pit:0"
    • Drive system:Screw
    • Max travel:168"
    • Max number of stops:2 (14')
    • Lift controls:Hold to Run/Constant Pressure
    • Motor Power:3.8 HP
    • Machine room:Not required
    • Door configuration:Same Side, Straight Through
    • Directives and standards:ASME A17.1 Section 5.3
