Do you want to see what the lift looks like in your environment? Try it out in Augmented Reality!

Intuitive lift design

The Cibes Air® combines beautiful, Scandinavian design with user-friendly features, creating a one-of-a-kind experience that engages all your senses. Thanks to its exquisite blend of elegant style and ergonomic function, this is an elevator that enhances both the beauty and comfort your home. In addition, the ready-made, space-efficient elevator concept of the Cibes Air® makes it very fast and easy to install.

Innovative design

The Cibes Air is a unique and innovative lift concept with a timeless, Scandinavian design. The platform controls are designed to tap into your natural instinct to grab and lean against the handrail for an intuitive user experience.

Natural materials

Thanks to the great range of colors and materials, it is easy to make the elevator blend seamlessly into your interior design. The Cibes Air offers you the choice between 250+ RAL colors, metal, natural textiles and wood.

Fast and easy installation

The ready-made, all inclusive elevator concept makes installation fast and easy. In fact, a 2-stop elevator can be installed and ready in 2-3 days, minimizing the need of building adaptations, as well as your construction costs.

Intuitive and innovative lift design Cibes Air

Unique user experience

Like for all platform lifts, the lift controls inside the lift car operate with hold-to-run. What makes the Cibes Air unique resides in its innovative and intuitive design, exploring your natural instinct to grab and hold on to the handrail. Just grab the handle to travel and release it to stop.

This elevator model has a rated load of 600-880 lbs (3-5 passengers) and travels at a speed of max 30 FPM.

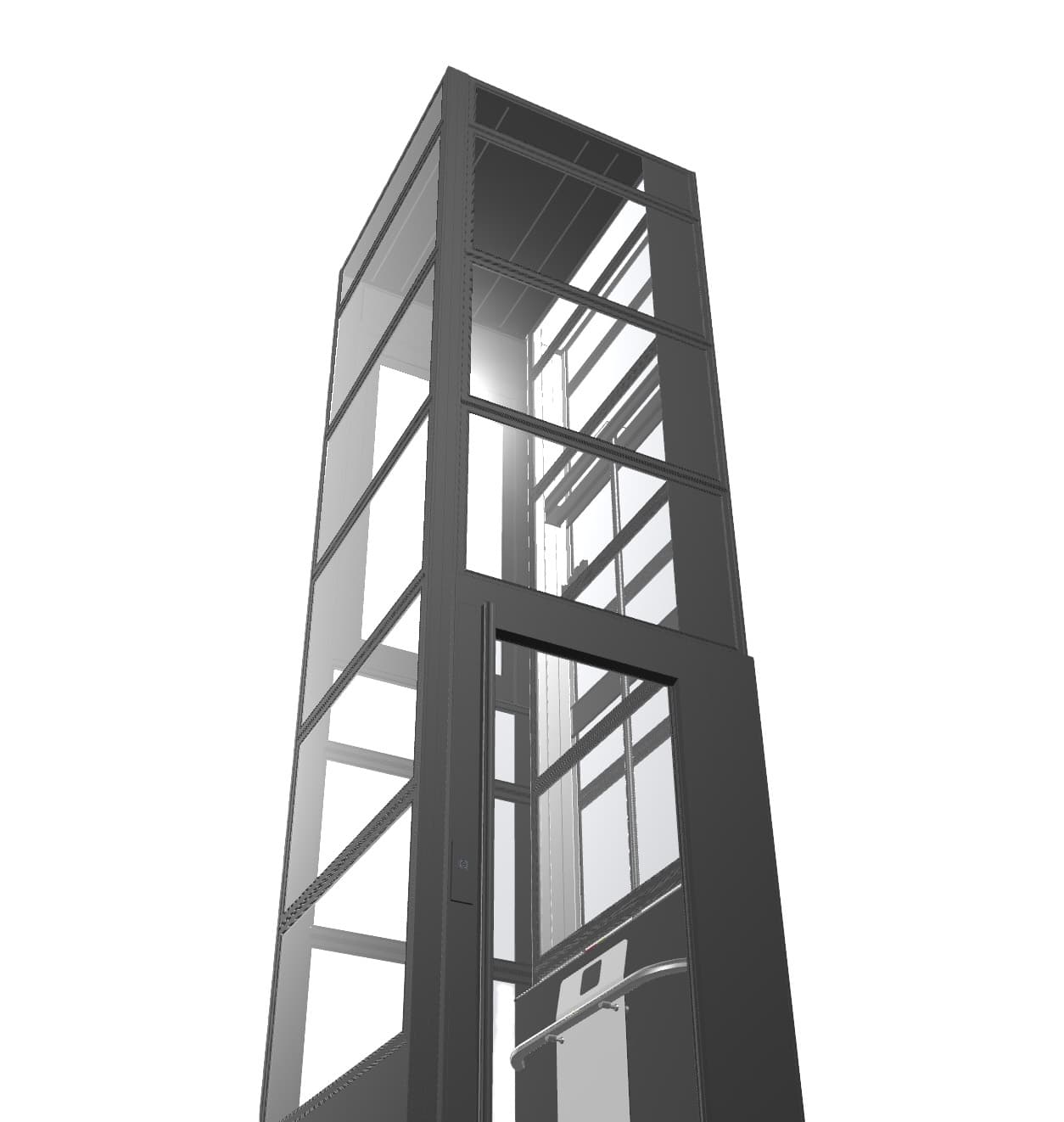

Due to regulations, platform lifts have a limited speed, but this limitation actually opens other great possibilities. For example, the Cibes Air does not need the big and bulky shaft structures that high-speed lifts require to cope with the forces. Our space-saving, prefabricated lift shaft in steel or glazed panels is enough.

Cibes Air innovative platform lift

A lift with high standards

The standard equipment of the Cibes Air includes features such as:

  • Ready-made lift shaft in steel panels (glazing is optional)
  • Panoramic doors with tempered and laminated safety glass and concealed door closers

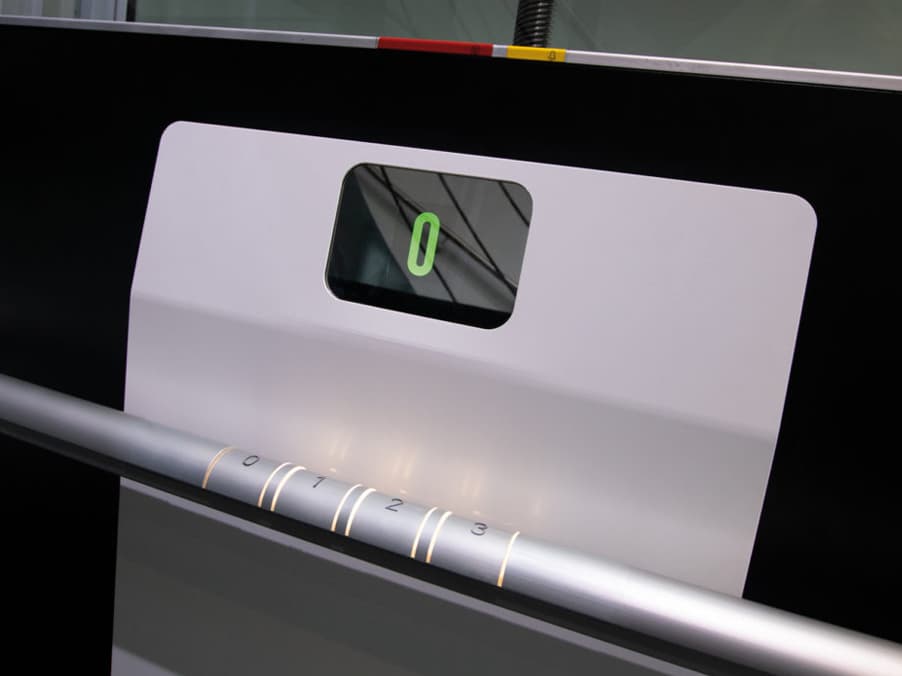

  • Innovative handrail with integrated floor buttons
  • Emergency telephone, emergency stop and alarm button with a unique design
  • Safety edges on all sides of the platform
  • Soft stop and start for a smooth ride
  • EcoSilent drive system
  • Battery emergency lowering system

For more information about our standard and optional features, please contact your local dealer.

Contact your local dealer

Cibes Air key features

lightning air 902×676

LED light

The beautiful LED effect around the front panel of the lift infuses the entire room with a cozy and welcoming atmosphere.

cibes-air-textile-close-up-safety-functions_HighresJPG

Elegant safety

The elegant and discreet design of the red emergency stop button and the yellow alarm button are unique for the Cibes Air.

led-display-902×676

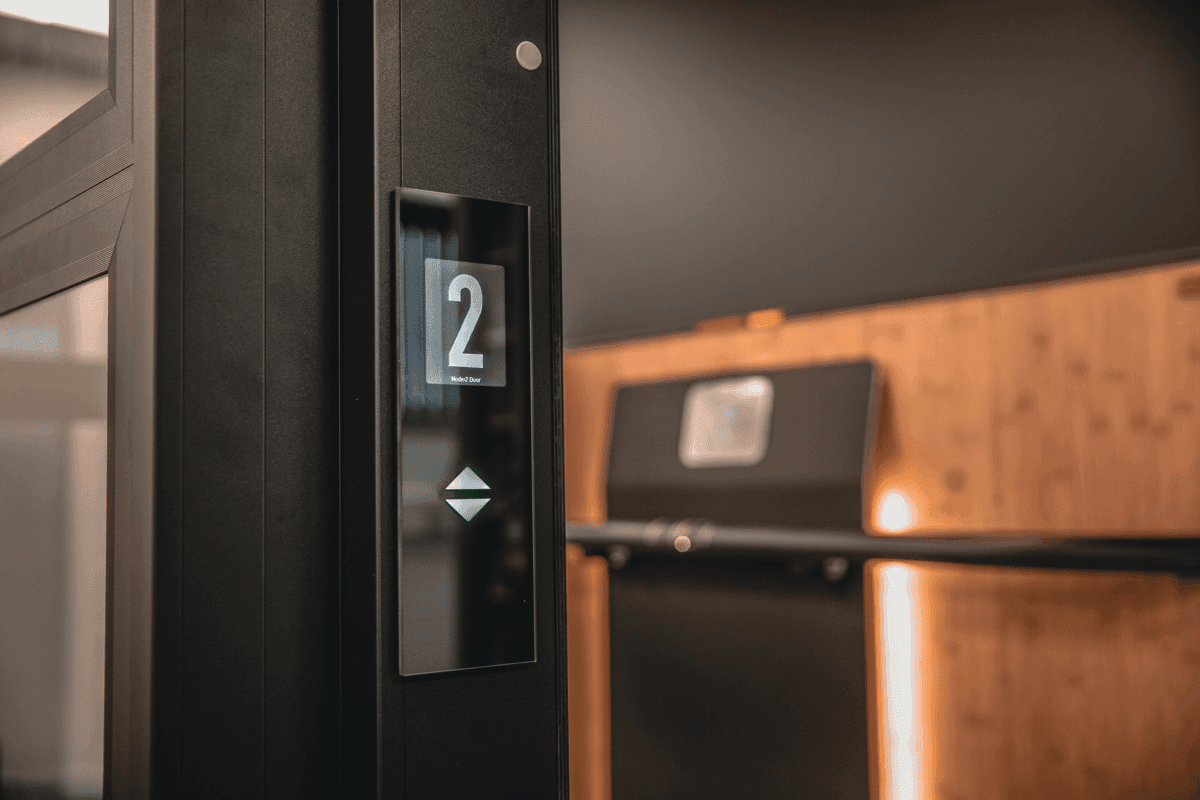

Lift display

The large 7" display with the floor indicator is an elegant and user-friendly standard feature for this elevator model.

Discover the Cibes Air

The Cibes Air gives you the freedom to create a customized elevator design that adds beauty, comfort and value to your home. Watch the video to explore the possibilities of this stylish and space-saving platform elevator!

Specifications and model details

Technical information

  • Installation:Indoor
  • Rated load:660/880 lbs
  • Power supply:230 VAC, 60 Hz, 16 AMP, Single-Phase
  • Speed:30 FPM
  • Min headroom:90 5/8" (door)
  • Lift pit:0", 2", or 2 3/4"
  • Drive system:Screw
  • Max travel:23 ft
  • Max number of stops:4
  • Lift controls:Hold-to-run
  • Motor Power:3 HP
  • Machine room:Machine room-less (MRL)
  • Door configuration:Single hinged doors (L/R), Same side, Straight-through, or 90 degree

Complete specifications and lift sizes

Check out the full Complete specifications and model details of Cibes Air.
