Wheelchair accessible lift
Your outdoor lift is spacious enough to take wheelchairs, walkers and strollers, or groups of up to 5 people.
Elevators for seamless outdoor living
Do you want to make the most of outdoor living? In that case, installing an outdoor lift will provide easy and comfortable access to your garden. The Cibes outdoor lift will resist to almost any weather conditions and because the lift is installed on the outside of your home, you do not need to worry about sacrificing any of your indoor space.
Weather resistant elevator
The lift comes fully equipped to handle most weather conditions and offers options for temperature control.
Ready-made concept
Because all elements are ready-made, your lift is much faster and easier to install than a conventional elevator.
Standard outdoor equipment
The outdoor lift is available in two wheelchair-friendly sizes: 39 ³/₈ x 57 ³/₄” and 43 ⁵/₁₆ x 57 ³/₄”. Your lift includes the following equipment to ensure that it is weather resistant:
- Slanted outdoor roof to protect the lift from rain and snow
- Door canopies in plexiglas or steel
- Rust proof AL5 aluminum doors
- Sealed, weather resistant call buttons
- Sealed glazed shaft panels
- Bottom frame with anti corrosive coating
- Electrical compartment with flooding protection
Your outdoor elevator is designed for a temperature range of approximately 14° to 86°F. For more extreme climates, we offer additional options for temperature control, such as AC ready lifts and heating solutions.
Lift car characteristics
The lift car controls are operated with hold to run operation. You simply maintain pressure on the floor button to travel and release pressure to stop.
Our outdoor lifts have a rated load of 880 lbs (4-5 passengers) and the lift speed is limited to 30fpm, in accordance with regulations.
However, the limited speed also offers advantages. Whereas conventional elevators need big and bulky shaft structures to absorb the forces generated by high speed, the Cibes outdoor lift just needs a prefabricated, space-saving ready-made shaft in steel or glazed panels.
Standard outdoor lift features
Slanted roof
The slanted outdoor roof can be configured to slope in 3 different directions to lead the rain and snow away from the building.

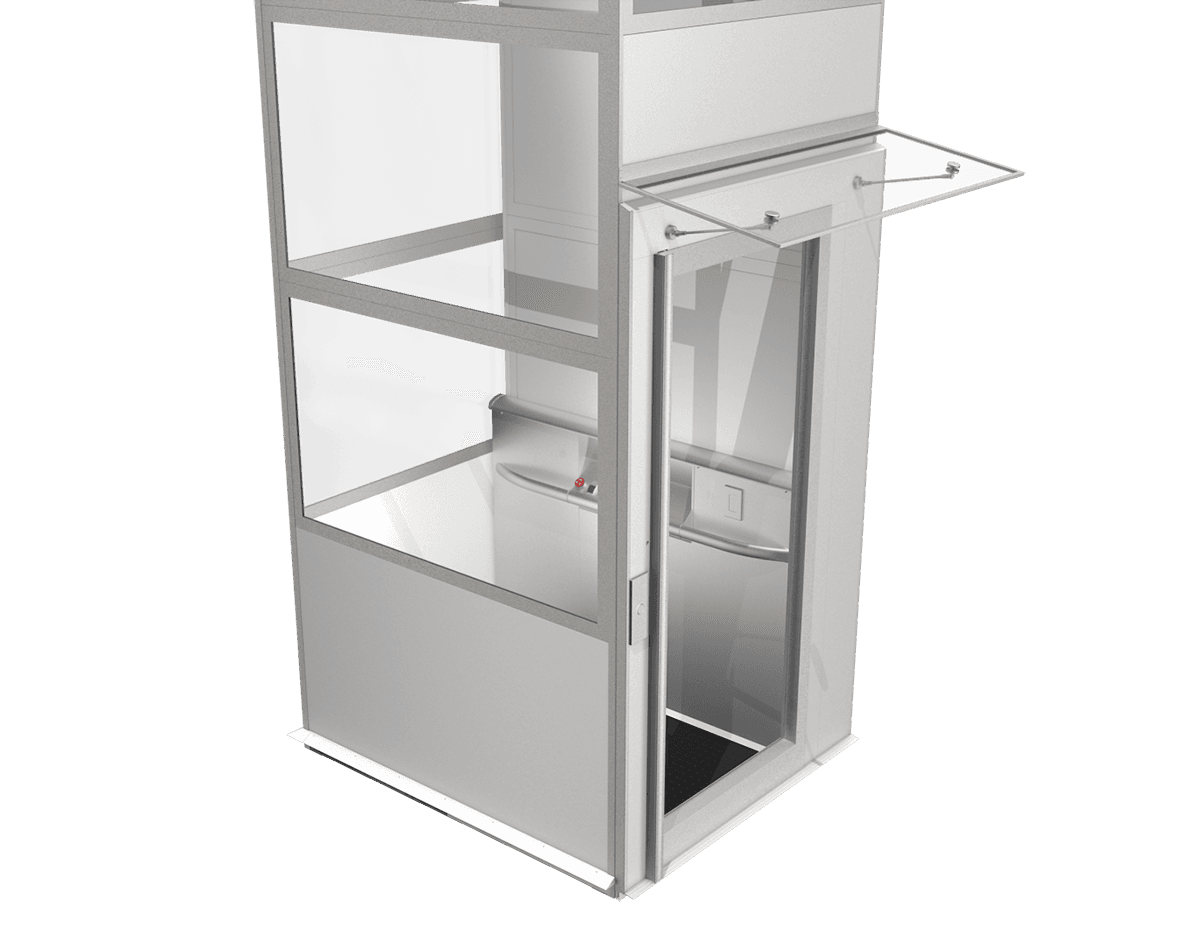

Plexiglas canopy
The elegant door canopy in plexiglas protects all exposed lift doors from light rain and snow, perfect for warm to temperate climates.
Steel canopy
The sturdy door canopy in steel protects all exposed lift doors from heavy rain and snow, which is ideal for cold and rough climates.
Call buttons
To resist in humid conditions, the push button is in stainless steel and has a class IP55 seal. The faceplate in anodized aluminum.
Rust proof aluminum doors
The strong and light-weight AL5 aluminum door is rust proof and the standard door model for our outdoor lifts.
Immaculate finish
No rivets are visible on the inside the shaft. The corner profile includes a cover to hide all rivets, for an immaculate finish.

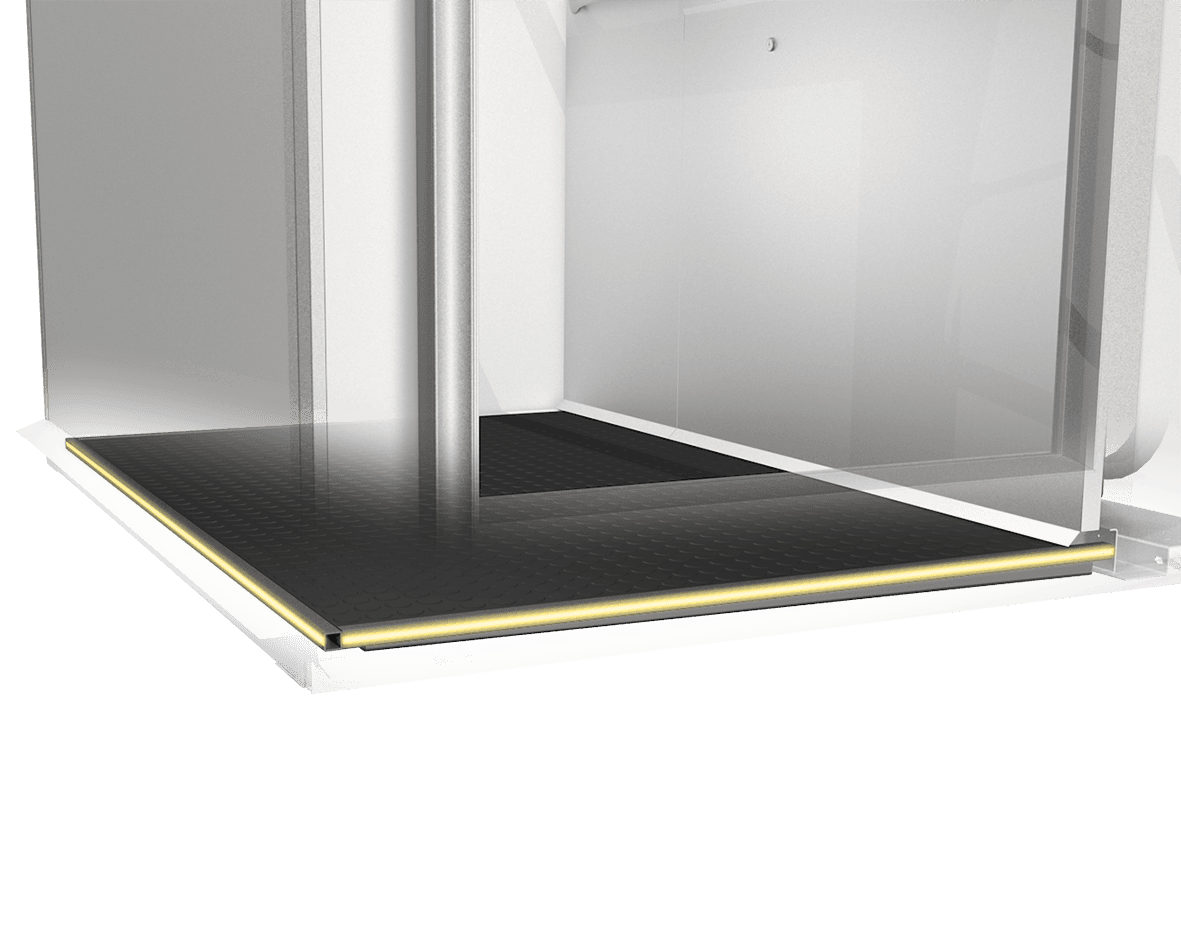

Sealed glass panels
The glazed panels of the lift shaft are equipped with a rubber seal to prevent water infiltration and reduce condensation.
Specifications and model details
Technical information
- Installation:Outdoor
- Rated load:880 lbs
- Power supply:230 VAC, 60 Hz, 16 AMP, Single-Phase
- Speed:30 FPM
- Min headroom:Depends on lift configuration
- Lift pit:0", 2", or 2 3/4"
- Drive system:Screw and nut
- Max travel:23 ft
- Max number of stops:4
- Lift controls:Hold-to-run
- Motor Power:3 HP
- Machine room:Machine room-less (MRL)
- Door configuration:Single access, Same side, Straight-Through, or 90 degree
Complete specifications and lift sizes
Check out the full Complete specifications and model details of Cibes Outdoor Lift.
Read more
