Symmetry LULA Elevator

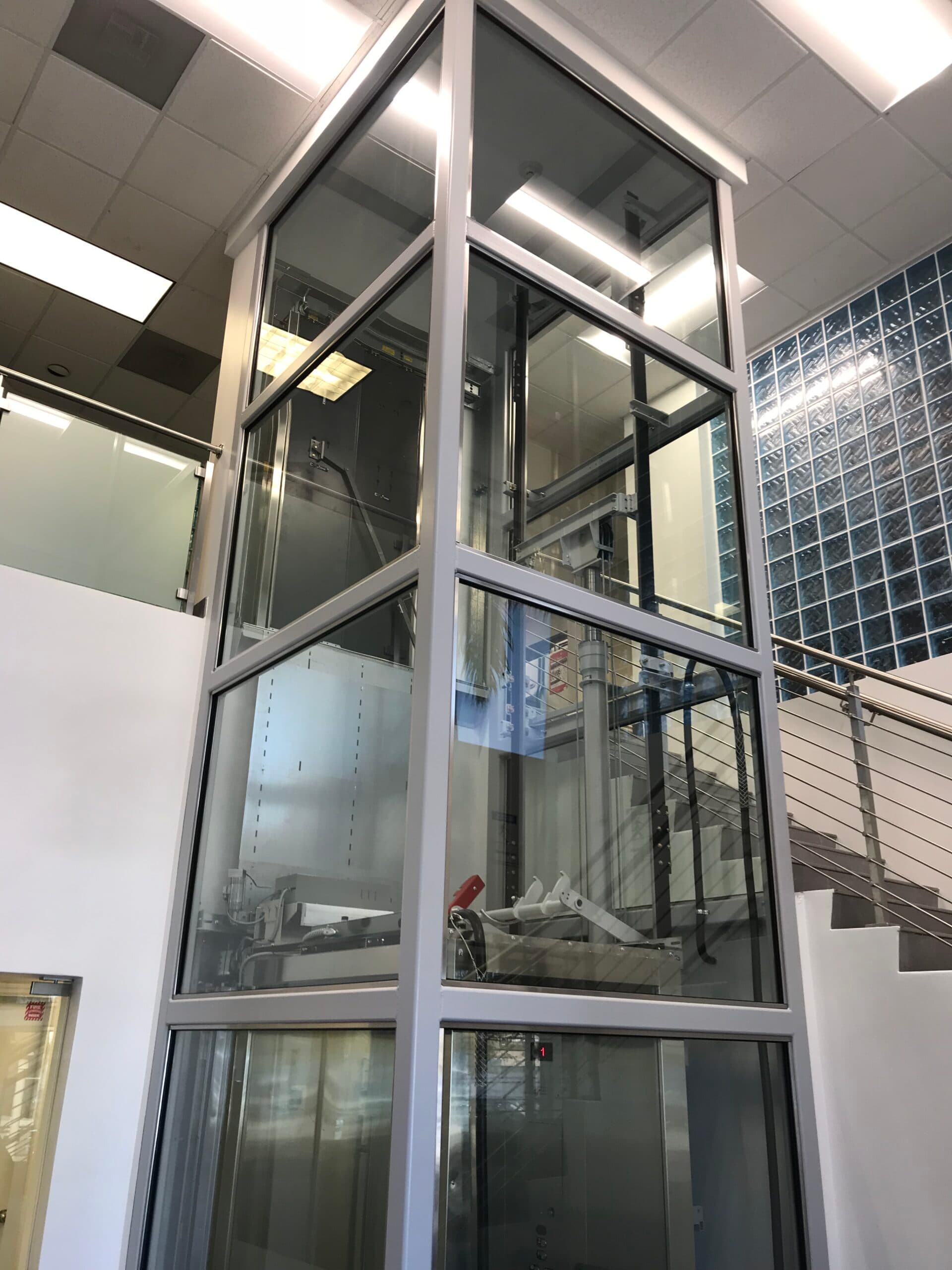

LULA elevator
The Symmetry LULA elevator is industry-leading in terms of quality, style, and design possibilities. It is also a space-efficient accessibility solution that requires less building adaptation than a conventional passenger elevator. If you are looking for an attractive and user-friendly lift solution that caters for the needs of schools, churches, multi-family housing units, libraries, and more, our LULA elevator is a great choice.
What is a LULA Elevator?
LU/LA stands for Limited Use/Limited Application. The LULA lift provides access for low occupancy/low rise commercial buildings where a traditional passenger elevator is not feasible or required by code. It is ideal for applications up to 6 stops and 25 ft (standard) or 40 ft (with approved variance) of travel.
All LULA elevators are limited by speed, travel, and capacity in order to comply with ASME A17.1 Section 5.2 and the ADA. Also check with your local authorities as they may have additional requirements.
LULA elevator benefits
To explain why our LULA elevator will save you space, time and money, we give you a shortlist of some of its main benefits:
- Shallowest pit depth in the industry (13” pit).
- Shortest overhead in the industry (104”).
- Low shaft construction requirements compared to larger commercial elevators.
- Lower code requirements on maintenance compared to larger commercial elevators.
- All lights are energy saving LED, including control panel and car lights.
- Includes directional level indicators.
- Single phase power supply.
Contact us for a free quotation!
We will guide you to the perfect elevator solution for your project.
LULA: small elevators with a big impact
In new-builds, where an accessible route is required, a conventional commercial elevator may be the only available option. But for many other buildings, a Limited Use/Limited Access lift is a cost-efficient and space-saving alternative to conventional elevators.
A Limited Use/Limited Access elevator is smaller than traditional commercial and passenger elevators and therefore needs fewer building adaptations for installation. As a matter of fact, a LULA lift combines the benefits of a commercial elevator and a wheelchair elevator. And, even though LULA elevators are smaller than conventional passenger lifts, they are ADA (Americans with Disabilities Act) compliant and constitute an excellent option to conventional elevators and lifts.
ADA & ASME compliance
Speed, travel, and capacity for all LULA elevators must be limited in order to comply with ASME A17.1 Section 5.2 and the Americans with Disabilities Act (ADA). Some of the basic requirements are the ability to provide:
- Capacity: 1400 lbs
- Cab Size: 18 square feet
- Door openings: Single entry (same side), adjacent (90 degree angle), and open-through (opposite sides)
LULA lifts may have additional limitations due to local regulations. Please contact your local Cibes Symmetry dealer to find out more about your local code requirements.

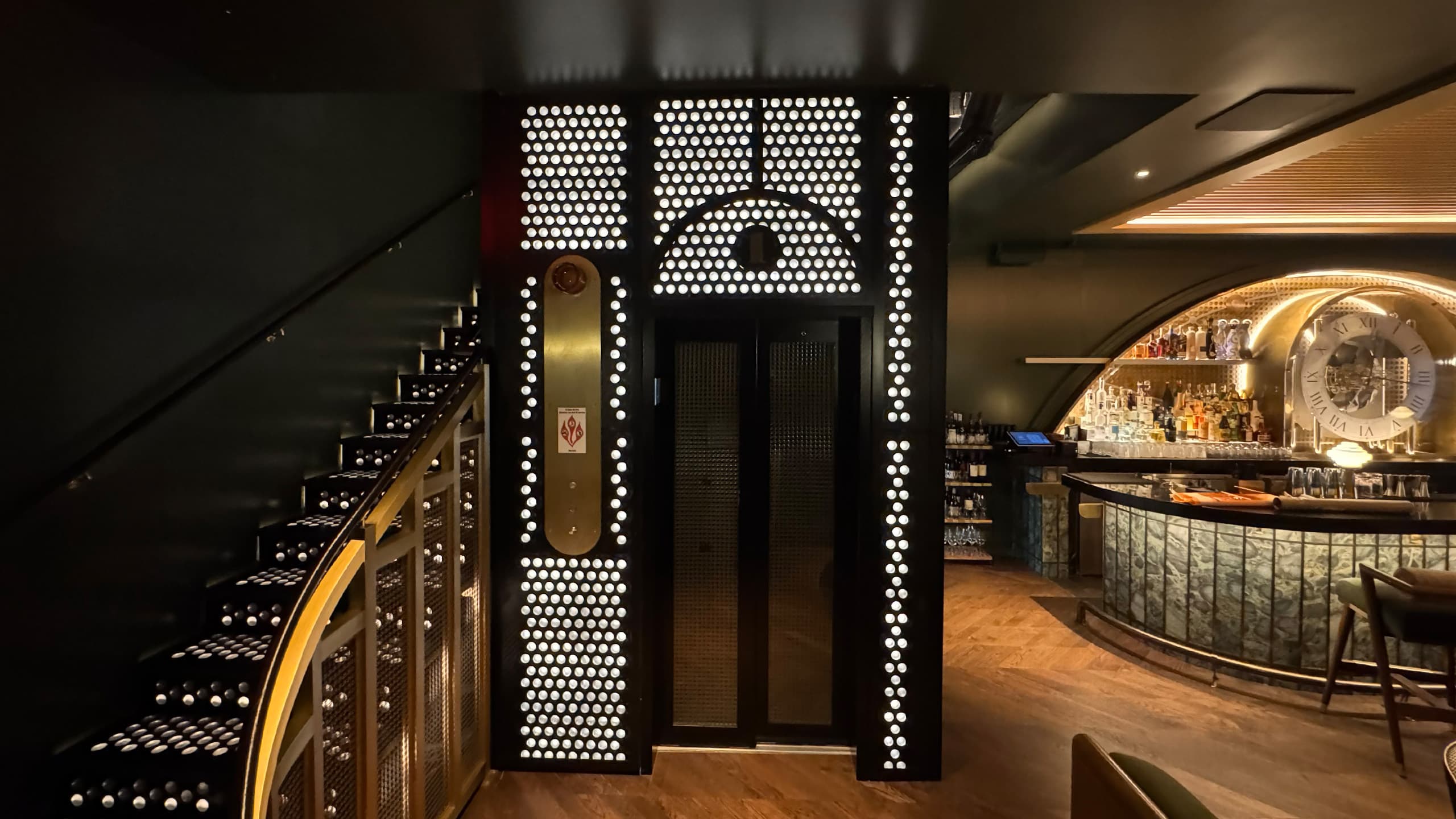

Symmetry LULA elevator in a downtown Austin restaurant
This custom LULA elevator was designed to complement a vibrant restaurant interior. With glass doors, black finishes, and warm brass accents, the elevator blends seamlessly into the space while providing reliable accessibility between levels. Thoughtfully integrated within the central staircase, the design maintains the flow of the restaurant while enhancing the overall guest experience.

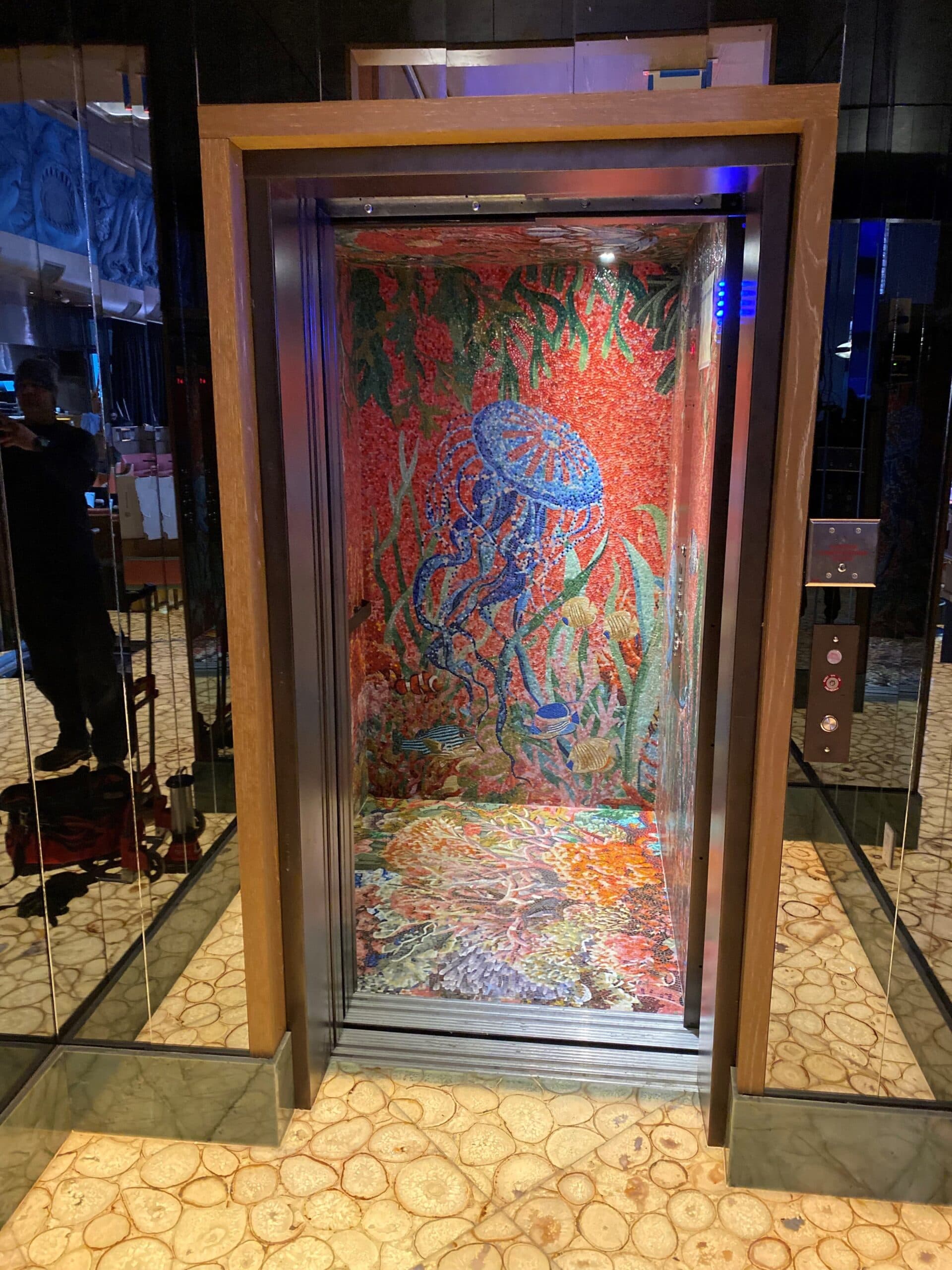

Highly customizable
Did you know that it is possible for us to customize your Symmetry LULA elevator to blend into almost any interior design? Just let us know what you want and we can make it happen.
At Cibes Symmetry, we love to customize our LULA lifts to make them harmonize with their surroundings. In addition to standard steel panels, we can craft the elevator car from various wood species, veneer, or hardwood panels, for example. We can also cover the elevator car with colorful patterns, using various techniques. Check out our customization options and take the first step towards your perfect elevator project.

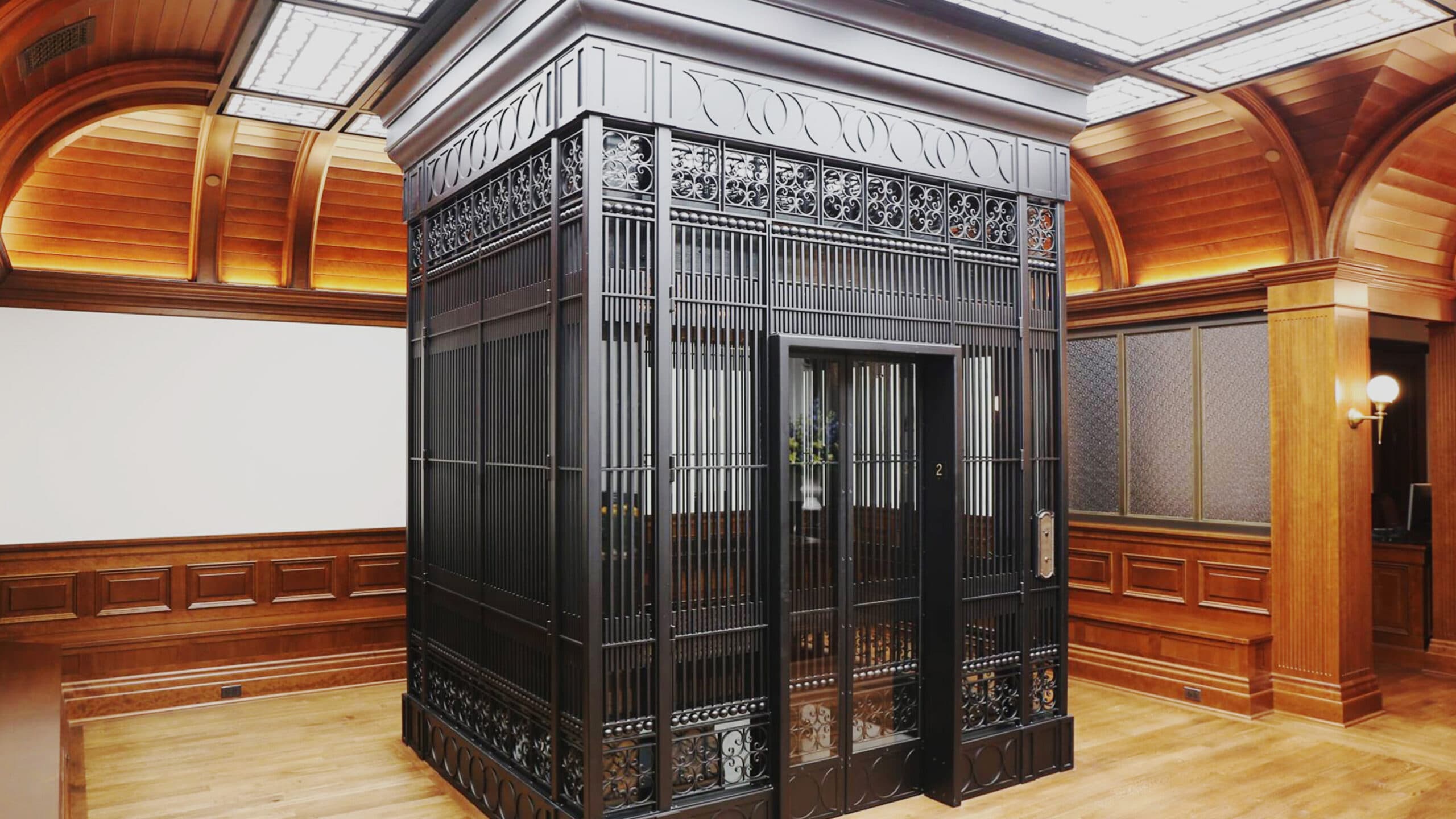

Symmetry LULA elevator in the Audrian Building
Inside the Audrian building resides the first Symmetry center-opening Limited Use/Limited Access elevator. This project was a labor of love for us and it required many hours of skillful craftmanship. But the result looks amazing and the elevator blends in perfectly with the architectural style of the building.
Safety first
LULA lifts must meet the same safety codes as traditional passenger elevators, as laid out in the ASME A17. 1 Safety Code for Elevators and Escalators. Because the safety of our elevator users always comes first, Symmetry LULA elevators include a comprehensive set of safety features, such as:
- ADA-compliant hands-free emergency phone
- Keyed in-car stop switch and alarm button
- Emergency lighting in car interior
- Uninterruptible Power Supply (UPS) for car lowering and power opening of the car and hoistway doors
Thanks to these features, passengers are always safe when traveling with our elevators, even in the event of a power failure.

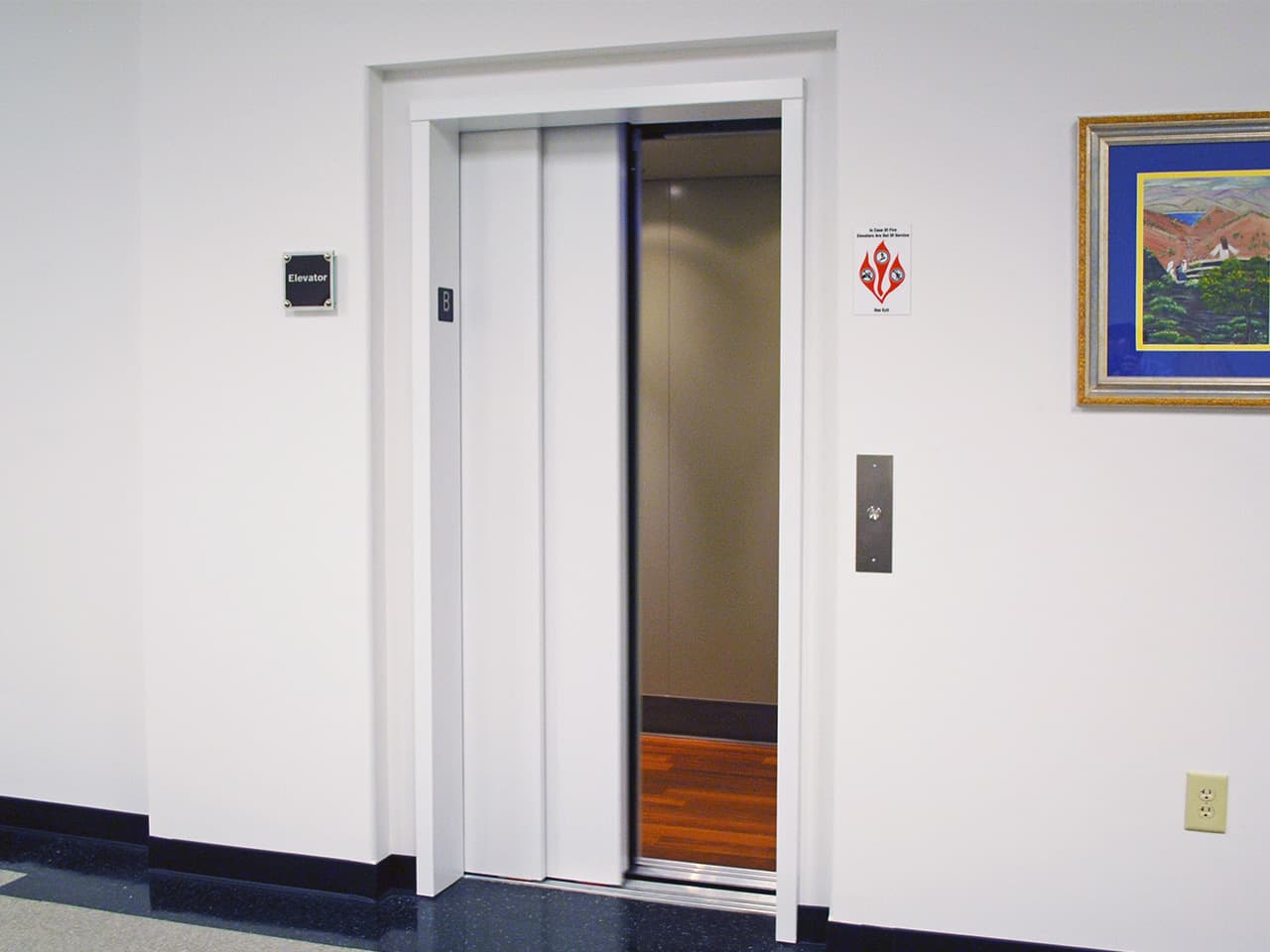

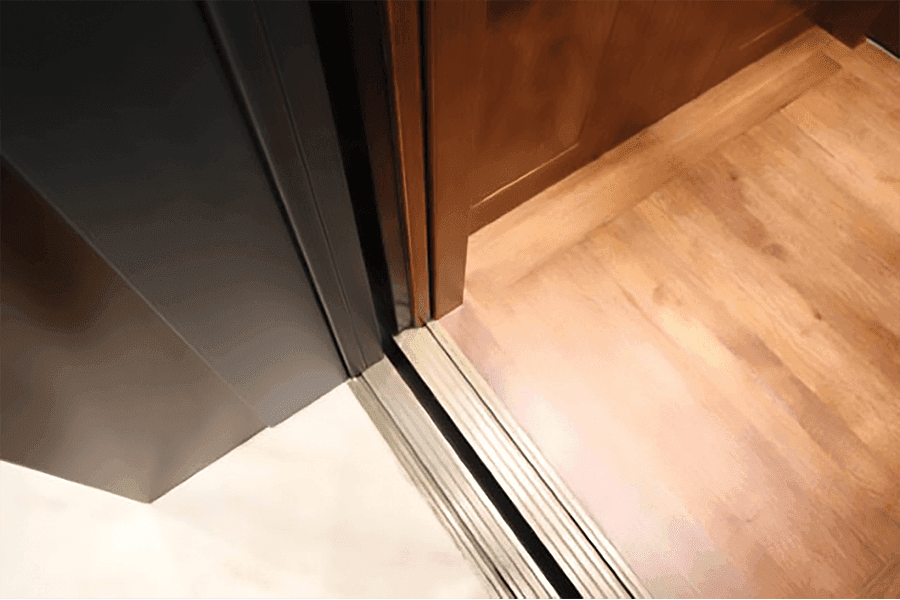

Telescopic elevator doors
To cater for your comfort and safety, our LULA elevator doors operate smoothly and at any speed that you want within the limits of codes and regulations. And, because every building is different, our elevator doors are available in a wide range of finishes. In addition, our doors can be placed on all sides of the elevator, except for the machinery side.
FAQ
What are LU/LA elevator dimensions?
The dimensions for a limited use/limited application elevator are dependent on your needs and application. Download our LULA design guide for details. Or contact your local Symmetry dealer.
How much does a LU/LA elevator cost?
There are many aspects that go into pricing your LU/LA elevator. Please contact your local Cibes Symmetry dealer for details.
Specifications and model details
Technical information
- Installation:Indoor
- Rated load:1400 lbs
- Power supply:Drive: 208/230 VAC/30 A/1 PH. Optional Drive: 208/230 VAC/15 A/3 PH. Lighting: 115VAC/15A/1 PH
- Speed:30 FPM
- Min headroom:New Construction 132", Existing Construction 104"
- Lift pit:14"
- Drive system:Hydraulic
- Max travel:25'
- Max number of stops:2 or 3 standard, Up to 6 with variance
- Lift controls:Automatic
- Motor Power:4HP for 1PH drive or 5HP for 3 PH drive
- Machine room:Required
- Door configuration:Single entry, open-through, adjacent
- Directives and standards:ASME A17.1 Section 5.2
Complete specifications and lift sizes
Check out the full Complete specifications and model details of Symmetry LULA Elevator.
View specifications
