Antera Luxury Home Elevator
The Architectural Luxury Home Elevator
Designed for architect-led homes and refined residential environments, Antera combines premium materials, intelligent controls, and flexible installation strategies into one unified residential elevator platform.
A New Standard in Residential Elevators
Antera is the premium architectural home elevator platform from Cibes Symmetry, created for residences where design, comfort, and engineering performance are equally important.
Developed for luxury homes, penthouses, and custom builds, Antera transforms vertical transportation into an integrated architectural feature rather than a standalone mechanical system.
With more than 70 years of global elevator innovation behind it, Antera brings together refined materials, intelligent controls, and proven safety engineering into a new generation of residential mobility solutions






Intelligent Control. Personalized Interaction.
Antera offers intuitive control interfaces designed for simplicity and customization.

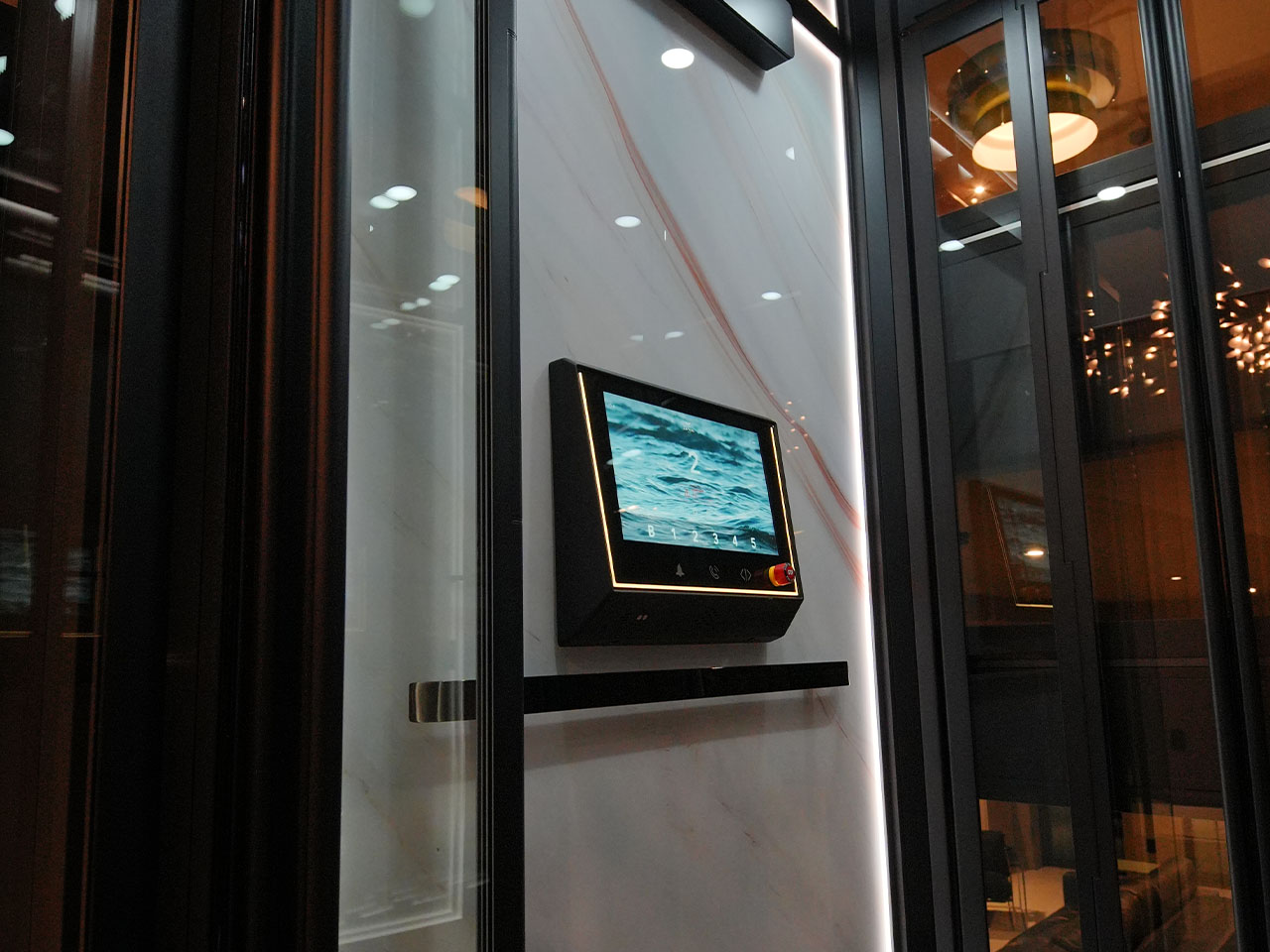

Available options include: 15.6” touchscreen smart COP
Supports:
- adjustable lighting
- personalized floor naming
- elevator status display
- ventilation control
- integrated security lock
- audible alerts
- optional music integration
Find your closest dealer
Get in touch with your closest dealer to take the first step towards the elevator of your dreams.
Residential Elevator Safety
Safety is built into every aspect of the Antera platform, combining intelligent monitoring systems with precision-engineered mechanical components designed for reliable residential operation.
Standard safety features include:
- Intelligent door protection with light curtain sensors
- Real-time operational monitoring
- Integrated emergency alarm and communication system
- Battery-powered emergency lowering capability
- Smooth start and stop travel technology
- Manual lowering crank and pit safety support devices
Antera is designed to meet applicable residential elevator code requirements, including ASME A17.1 compliance.
Specifications and model details
Technical information
| Cabin With Panoramic Shaft | Cabin Shaft by Others | |
|---|---|---|
| Application | Residential | Residential |
| Installation | Indoor | Indoor |
| Rated load | 770 lbs | 770 lbs |
| Power supply | Main Line: 230V, 60 Hz, Single Phase, 30 Amp. Car Light/Machine space lighting/Machine space receptacle: 115V, 60 Hz, Single Phase, 20 Amp | Main Line: 230V, 60 Hz, Single Phase, 30 Amp. Car Light/Machine space lighting/Machine space receptacle: 115V, 60 Hz, Single Phase, 20 Amp |
| Speed | 30 fpm | 30 fpm |
| Min headroom | 98 7/16" | 98 7/16" |
| Lift pit | 0", 1 15/16", 3 15/16" | 3 15/16" |
| Drive system | 24 mm Pitch Screw | 24 mm Pitch Screw |
| Max travel | 49.2 ft / 590 9/16" | 49.2 ft / 590 9/16" |
| Max number of stops | 6 stops | 6 stops |
| Lift controls | Auto-Run | Auto-Run |
| Motor Power | 3.89 HP | 3.89 HP |
| Machine room | Machine Space - Integrated in Car Structure | Machine Space - Integrated in Car Structure |
| Door configuration | Landing: Saloon Door. Cabin: Bi-folding Door | Landing: Saloon Door. Cabin: Bi-folding Door |
