Require minimal site modifications
Can be a cost-effective solution for your accessibility needs, meaning you can keep costs down and no associated building work required.

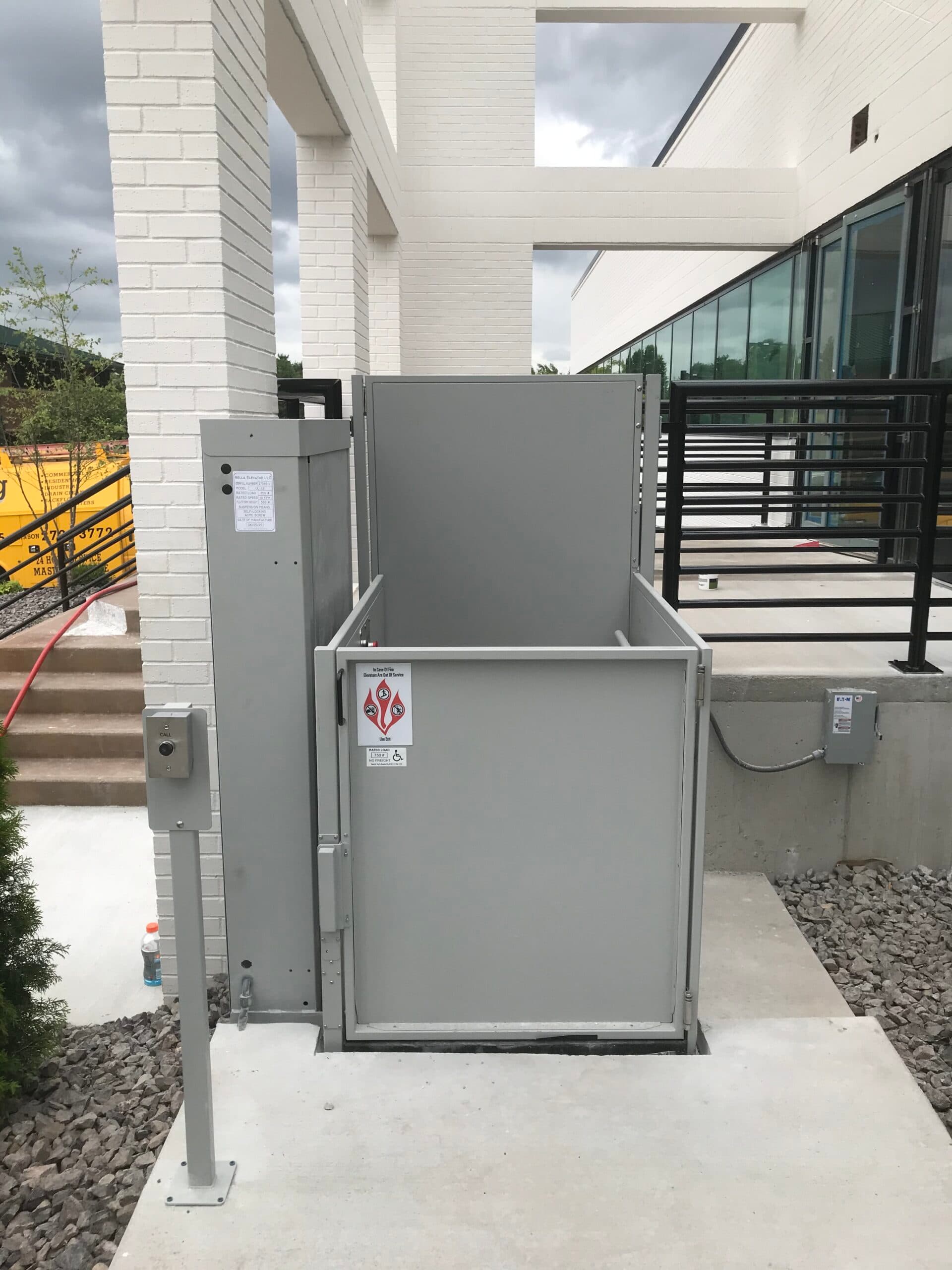

Unenclosed vertical platform lift
The unenclosed wheelchair lift or vertical platform lift can be used in a residential or commercial setting.
Suitable for indoor and outdoor use in Acme Screw and Hydraulic drive systems. You will also find these lifts in commercial settings for accessible office entrances, stadium seating, or low-rise elevation changes.
Proudly made in the U.S.A.
Our VPLs exemplify high-quality craftsmanship, safety compliance, and support for local businesses. Cibes Symmetry: Your complete lift solutions provider, nationwide with local service
Great for low rise applications
An open platform lift that is generally used to raise and lower wheelchairs, with a lifting height of up to 60".
Customize your Unenclosed vertical platform lift
Cibes Symmetry presents a diverse array of design choices, ensuring seamless access where required and effortlessly integrating with the aesthetics of your building.
Symmetry Wheelchair home lift
The Symmetry Wheelchair Home Lift is our best-seller. While home elevators have been seen as a luxury item in the past, today, they are much more of a necessity. The home elevator can provide a safe and convenient way to get between floors.
Accessibility
An inexpensive means to provide accessibility
The primary advantage of an unenclosed vertical platform lift is that it provides accessibility for individuals with mobility challenges. For instance, it allows people who use wheelchairs, scooters or have difficulty navigating stairs to easily access elevated areas, such as:
- Porches
- Decks
- Stages
Specifications and model details
Technical information
- Installation:Indoor/Outdoor
- Rated load:750 lbs
- Power supply:115 VAC/25A/1 PH, 230VAC/15A/1 PH (not available for Hydraulic)
- Speed:10 FPM (20 FPM for Accelerated Acme and Hydraulic)
- Min headroom:80"
- Lift pit:3" pit or 0" with Access Ramp
- Drive system:Standard Acme Screw, Accelerated Acme Screw, or Chain Hydraulic
- Max travel:168"
- Max number of stops:4
- Lift controls:Constant Pressure (Hold to Run)
- Motor Power:1 1/2 HP (3 HP for Hydraulic)
- Machine room:Self Contained
- Door configuration:Straight Through, 90 Degree, 3 Opening
- Directives and standards:ASME A18.1
Complete specifications and lift sizes
Check out the full Complete specifications and model details of Symmetry Unenclosed.
Read more
