Enclosed Lift
The Enclosed Lift is A18.1 code-compliant and designed for ease of installation. It can be used as a residential lift or in a commercial application.

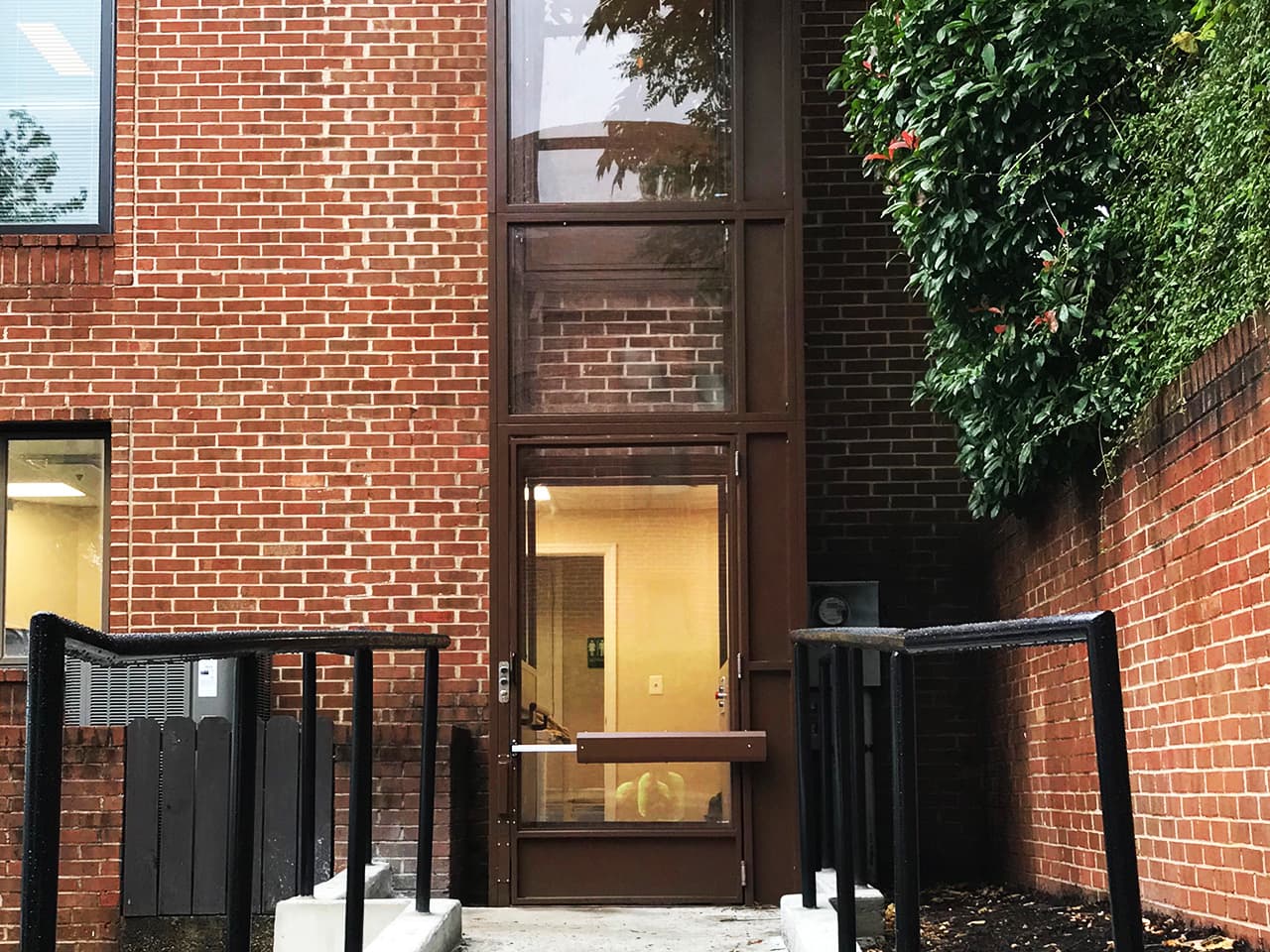

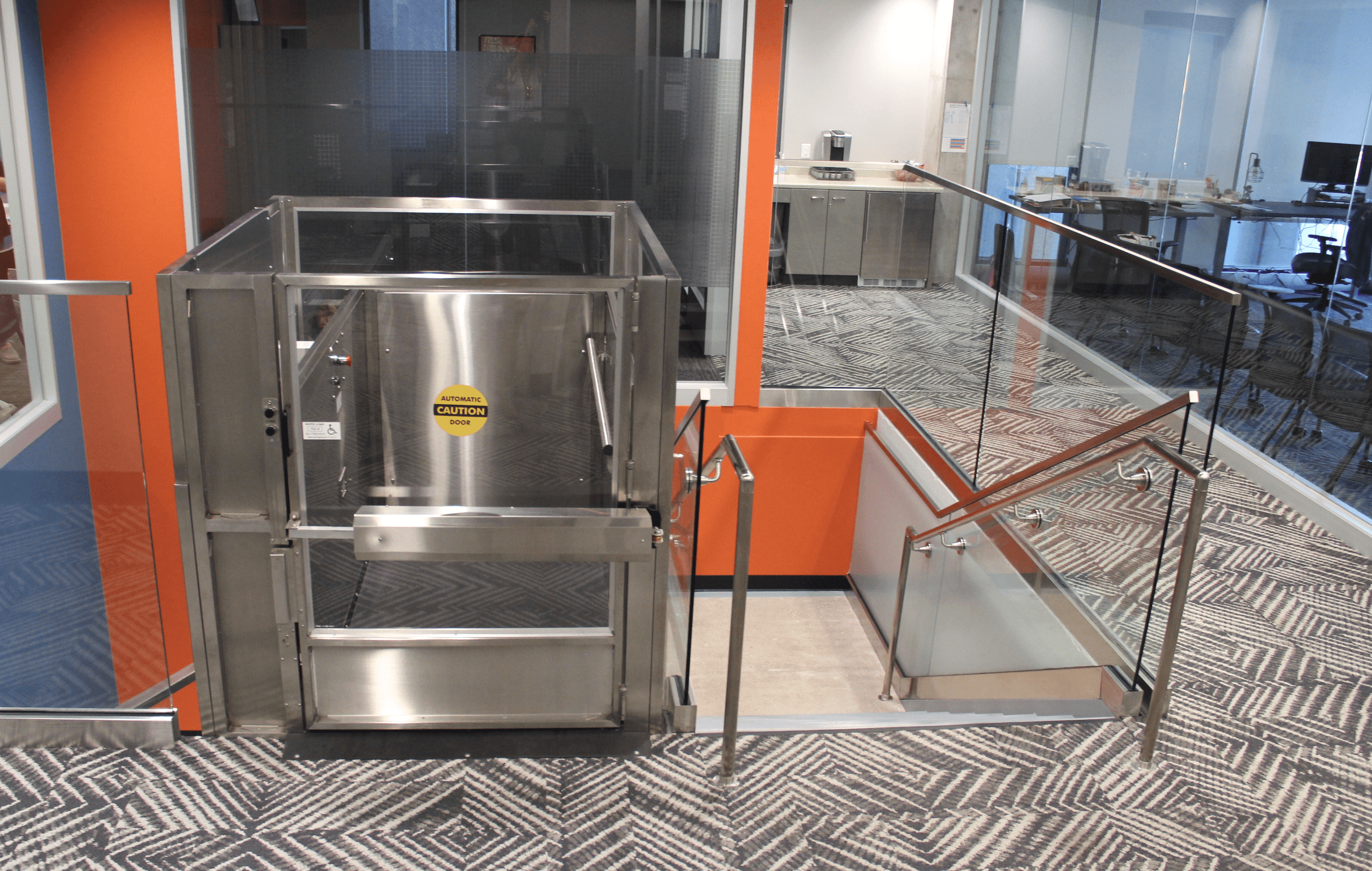

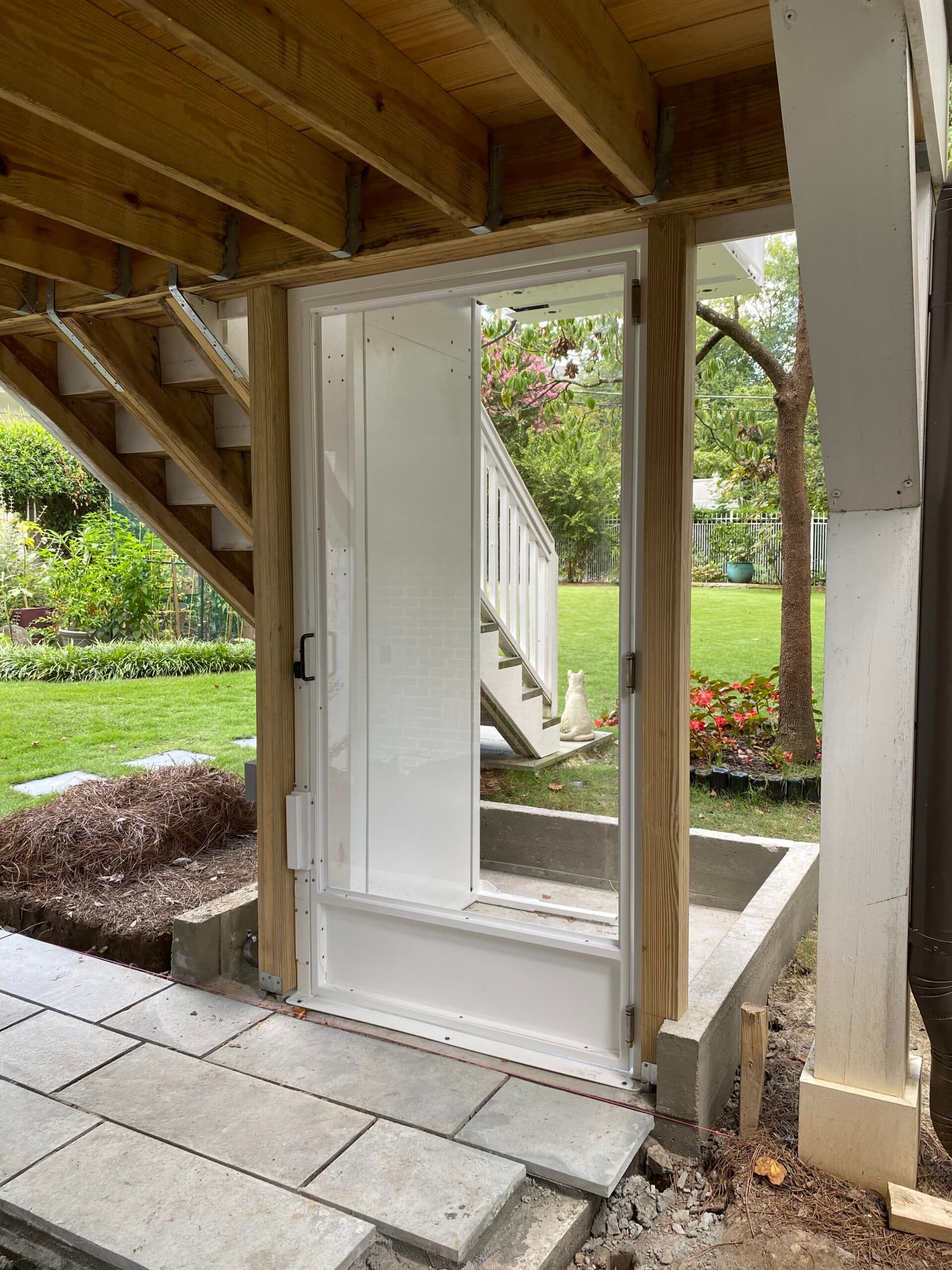

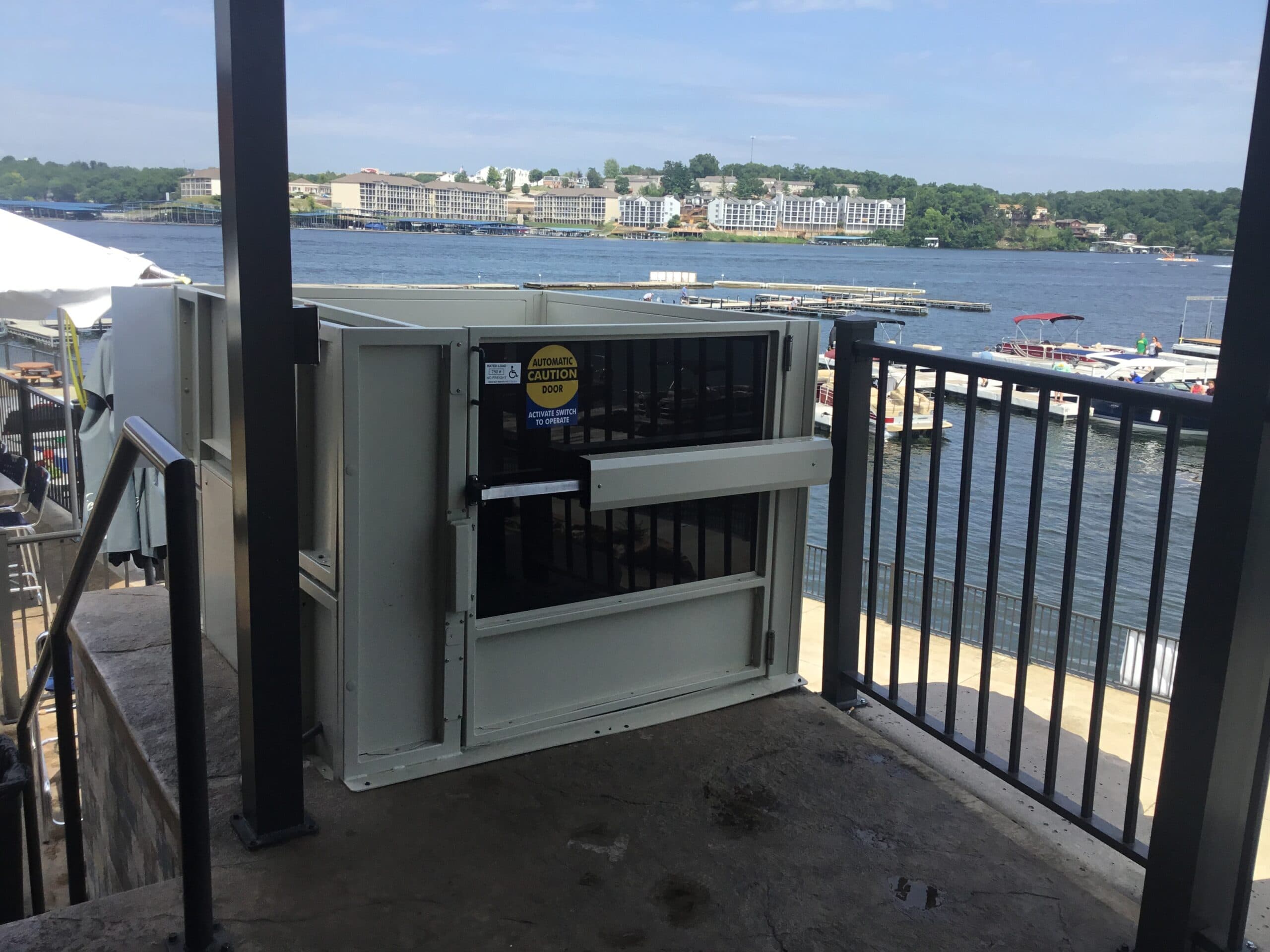

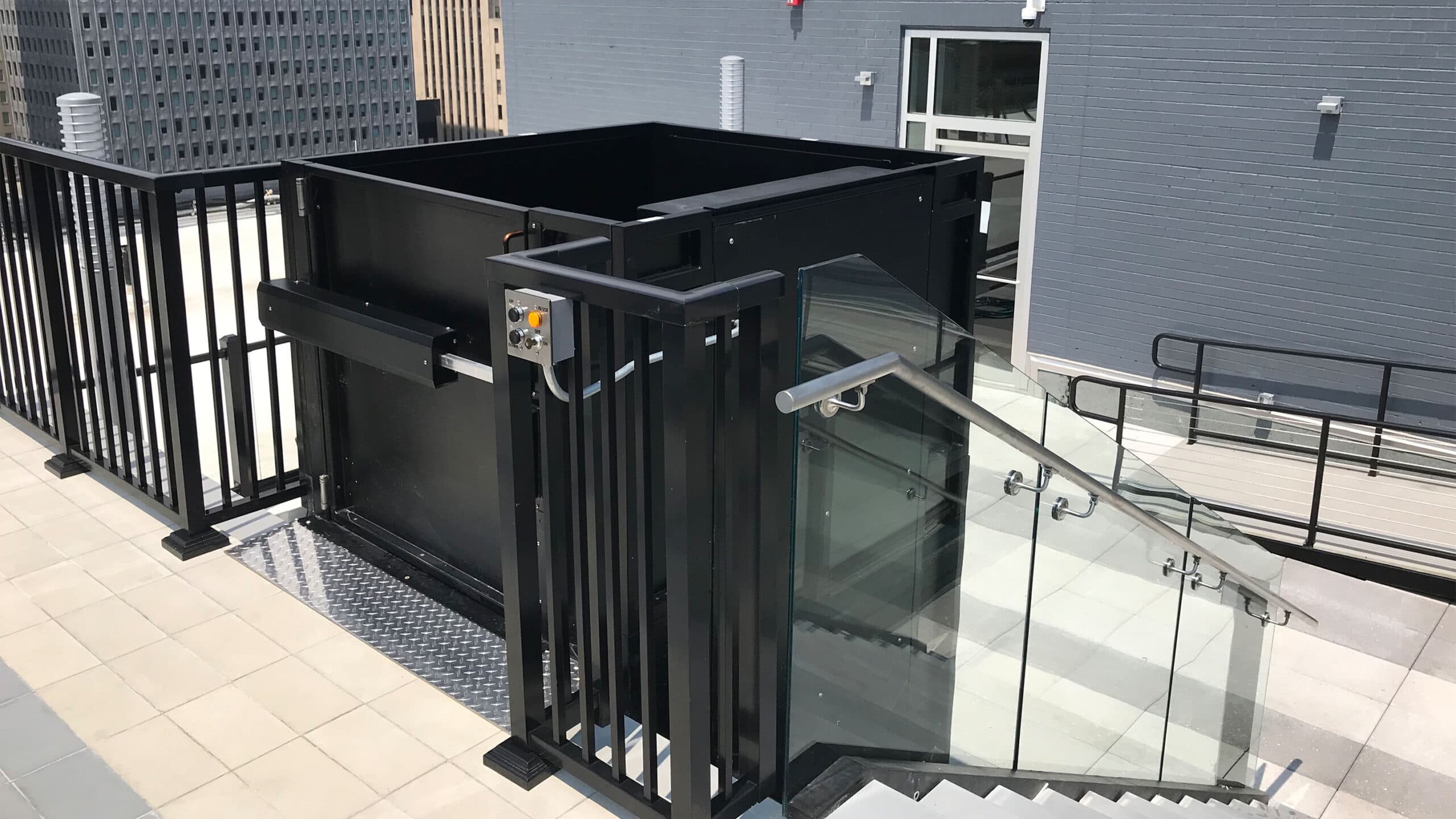

When used in private residences, the Enclosure vertical platform lift requires slightly more space than an Unenclosed lift. They travel heights up to 168″. You may see an Enclosed lift in commercial settings, including parking structures, airport terminal lifts, and providing access to stadium seating.
No shaft required
All-inclusive lift solution. The enclosure is the shaft and it comes with it.
Design options
Experience enhanced customization options with Symmetry Enclosure, tailoring it to perfectly suit your unique requirements.
Enclosure options
There are two enclosure options to choose from:

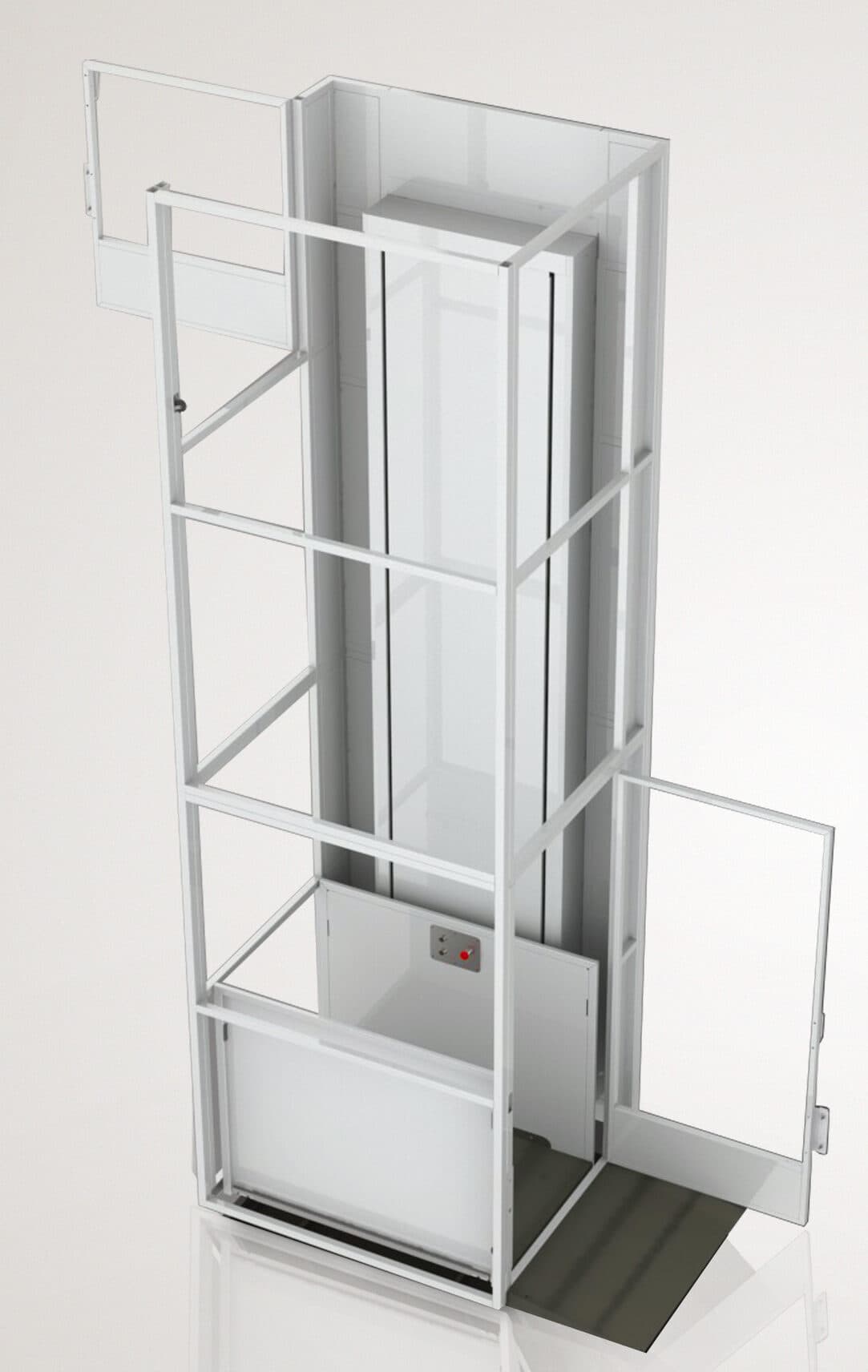

- Metal Infill enclosure wall panels for EL
- Acrylic or Laminated Safety Glass infill enclosure wall panels for ELP
Technical highlights
The Symmetry Enclosure VPL has a rated load of 750 lbs. The lift moves as a speed of 10-20 fpm (depending on drive option).
Constant pressure
Unlike a residential elevator, constant pressure on the call button is required when calling the lift to the appropriate landing and when a passenger sends the lift to the desired level.
Integrated doors and locks
Landing interlocks keep doors closed/locked when the platform is at another landing, ensuring safety at all times.
Drive options
There are a variety of drive options to choose from with the Symmetry Enclosed platform lift:
- Acme Screw Drive: 10 fpm, 1 HP, 115 VAC
- Accelerated Acme Screw Drive: 20 fpm, 1 HP, 115 VAC
- Chain Hydraulic Drive: 17-20 fpm, 3 HP/24 VDC, 115 VAC
Specifications and model details
Technical information
- Installation:Indoor/Outdoor
- Rated load:750 lbs
- Power supply:115 VAC/25A/1 PH, 230 VAC/15A/1 PH (not available for Hydraulic)
- Speed:10 FPM (20 FPM for Accelerated Acme and Hydraulic)
- Min headroom:80"
- Lift pit:3" pit or 0" with Access Ramp
- Drive system:Standard Acme Screw, Accelerated Acme Screw, or Hydraulic
- Max travel:168"
- Max number of stops:4
- Lift controls:Constant Pressure (Hold to Run)
- Motor Power:1 1/2 HP (3 HP for Hydraulic)
- Machine room:Self Contained
- Door configuration:Same side, Straight Through, 90 Degree, 3 Opening
- Directives and standards:ASME A18.1
Complete specifications and lift sizes
Check out the full Complete specifications and model details of Symmetry Enclosure.
